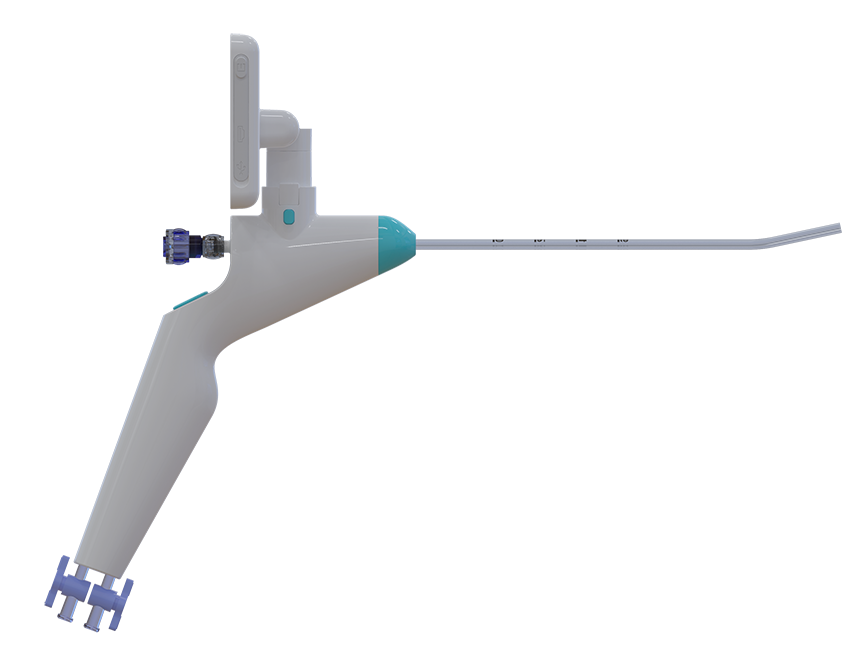

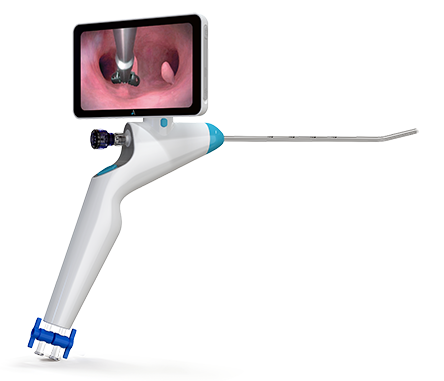

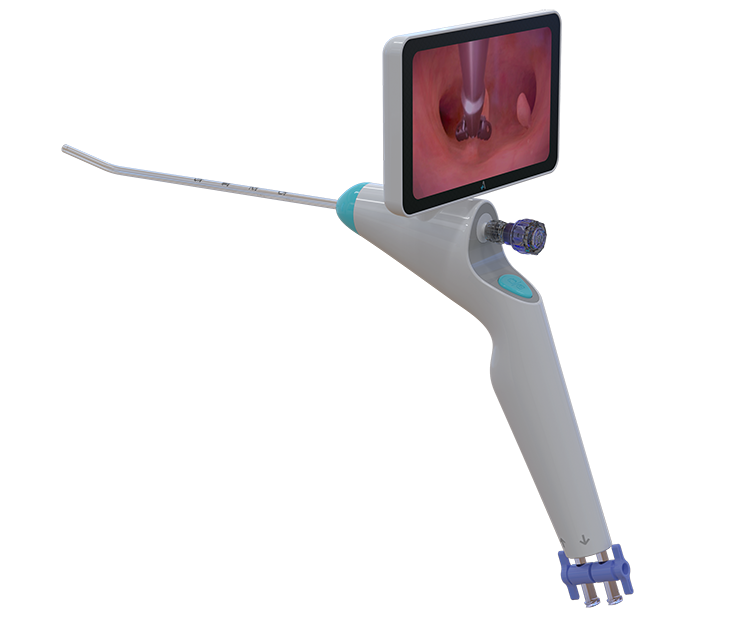

Electronic Hysteroscopic Imaging Catheter & Portable Electronic Endoscope Image Processor

Indications / Application

• Diagnostic hysteroscopy
• Uterine cavity examination
• Endometrial lesion detection (polyps, fibroids, adhesions)
• Evaluation of abnormal uterine bleeding
• Infertility-related uterine assessment
• Targeted biopsy of intrauterine lesions

Imaging System

• Imaging sensor: High-definition (HD) CMOS sensor
• Resolution: Megapixel HD imaging (real-time)
• Image output: High-definition digital display
• Field of view: Wide-angle uterine cavity visualization

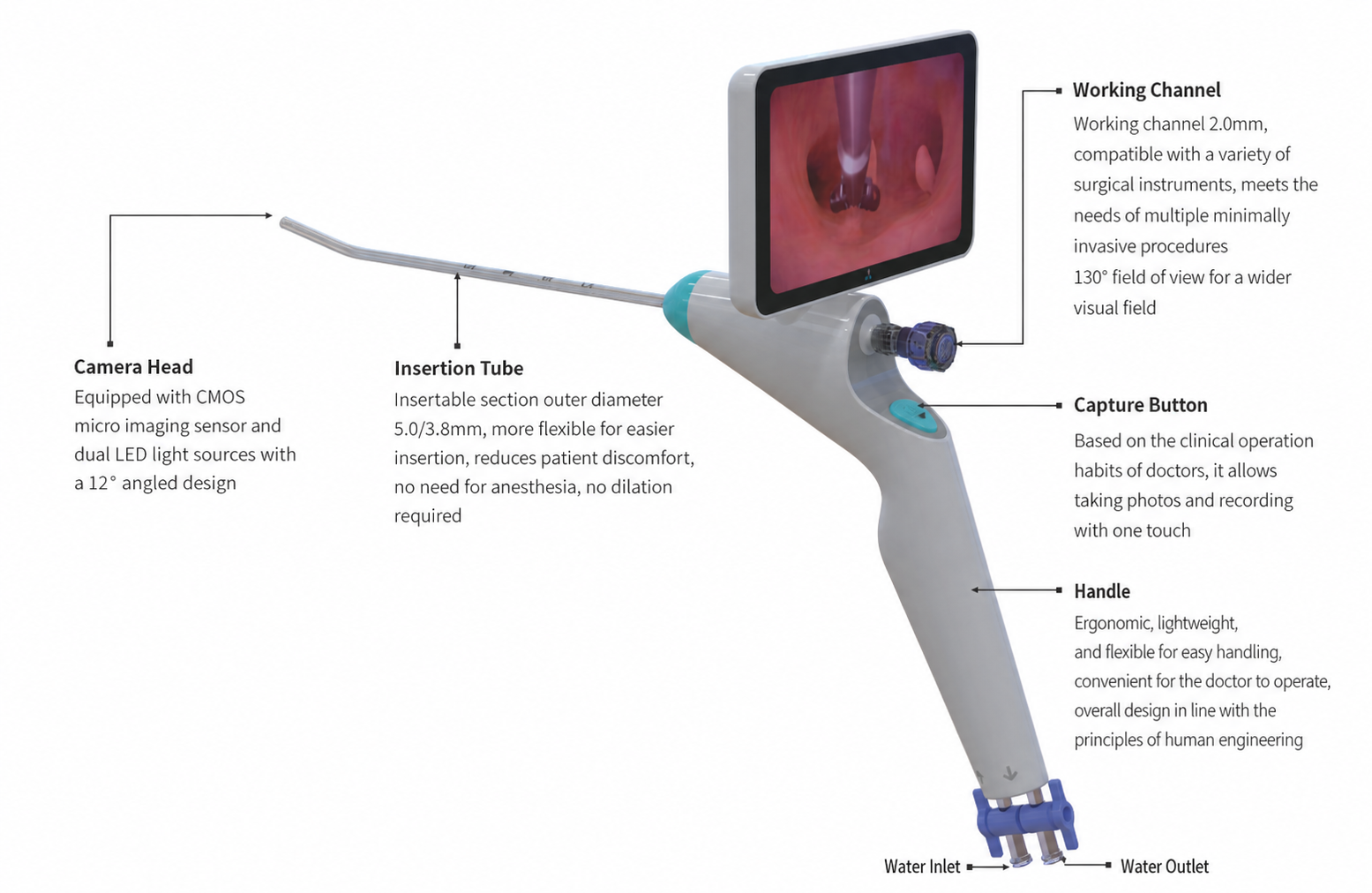

Catheter Design & Structure

• Single-use electronic hysteroscopic catheter
• Integrated imaging and illumination system
• Built-in working/instrument channel (model dependent)
• Flexible insertion structure for patient comfort

Physical Characteristics

• Weight: Approx. 82 grams
• Lightweight and compact design
• Ergonomic structure for single-hand operation

Illumination System

• Integrated LED light source
• High brightness with low heat generation
• Uniform illumination for clear visualization

Functional Features

• Real-time high-definition (HD) imaging
• Plug-and-play operation (ready to use)
• Supports continuous clinical workflow

Portable Image Processor

• System Functions

1. Real-time image processing and display
2. Image capture and recording capability
3. Digital image enhancement

• Display & Interface

1. Medical-grade LCD display
2. High-resolution output
3. User-friendly interface

• Connectivity

1. Compatible with disposable hysteroscopic catheter
2. Stable digital signal transmission
3. Portable and clinic-friendly design
